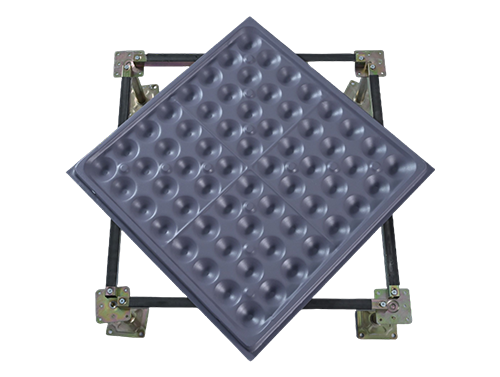

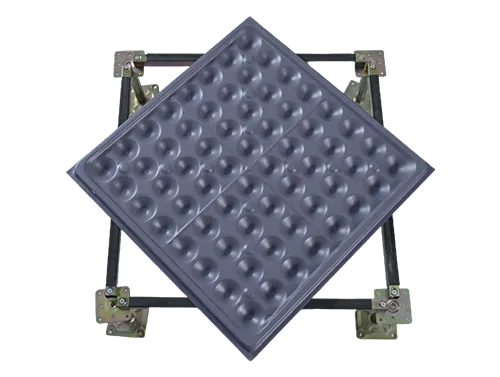

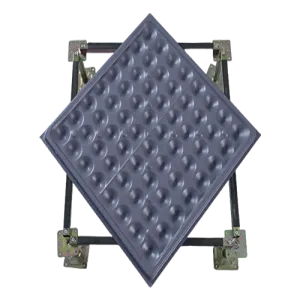

Ventilation and Heat Dissipation OA Network Floor: Comprehensive Guide to Functionality, Installation, and Maintenance

The Ventilation and Heat Dissipation OA Network Floor is an advanced flooring system designed to improve airflow and enhance cooling efficiency in high-demand environments such as data centers, server rooms, and offices with heavy equipment. This specialized floor is engineered to support high load-bearing capacity while promoting effective ventilation and heat dissipation, ensuring that electronic devices and office machinery remain cool and operate efficiently.

In this comprehensive guide, we will cover the following topics:

• Main Features and Functions

• Operational Instructions

• Step-by-Step Installation Process

• Maintenance and Care Requirements

This guide is structured to provide in-depth information to help you understand the key features of the Ventilation and Heat Dissipation OA Network Floor, how to properly install it, and how to maintain it for optimal performance.

1. Main Features and Functions

The Ventilation and Heat Dissipation OA Network Floor combines a modular design with advanced ventilation features to address the cooling challenges of modern office environments and data centers. Here’s a breakdown of its main functions:

1.1 Enhanced Heat Dissipation

One of the core functions of this floor system is its ability to improve airflow and dissipate heat generated by equipment. By utilizing strategically designed ventilation channels within the floor panels, the system ensures that hot air is efficiently removed from under the floor and circulated throughout the space. This prevents overheating of sensitive electronic devices, such as servers, computers, and networking equipment.

1.2 High Load-Bearing Capacity

The Ventilation and Heat Dissipation OA Network Floor is designed to support heavy office equipment, including large server racks, workstations, and other high-density devices. It can withstand up to 1000 kg/m², providing a stable and reliable surface that meets the needs of demanding work environments.

1.3 Modular Design for Flexibility

The floor features a modular design that allows for easy installation, reconfiguration, and maintenance. Individual panels can be replaced or rearranged without disrupting the entire system, which is particularly useful for offices or data centers that require frequent adjustments or upgrades.

1.4 Anti-Static Properties

Like other OA network floors, the Ventilation and Heat Dissipation OA Network Floor incorporates anti-static properties, helping to protect sensitive electronic equipment from electrostatic discharge (ESD). This is achieved through a conductive layer that channels static electricity safely away from devices.

1.5 Improved Air Circulation

The integrated ventilation channels allow for better air circulation beneath the floor, which supports cooling systems and reduces the reliance on external air conditioning. This makes the floor system energy-efficient and cost-effective, contributing to an overall reduction in energy consumption.

1.6 Durability and Long-Lasting Performance

Made from high-quality materials, the Ventilation and Heat Dissipation OA Network Floor is designed to withstand long-term wear and tear in high-traffic areas. The floor is resistant to abrasion, corrosion, and chemical exposure, ensuring it remains functional and visually appealing for many years.

2. Operational Instructions

Proper operation and understanding of the Ventilation and Heat Dissipation OA Network Floor are essential for ensuring its long-term performance and efficiency. Below are detailed operational instructions for maximizing its benefits:

2.1 Operating Conditions

• Temperature Range: The floor is designed to function effectively within a temperature range of -20°C to 60°C, which makes it suitable for a variety of environments, including both hot and cold climates.

• Humidity Range: Ideal humidity levels for the floor's performance should be between 40% and 60%. Extreme humidity can affect the anti-static layer and overall durability of the floor.

• Foot Traffic: The Ventilation and Heat Dissipation OA Network Floor is designed to withstand moderate to heavy foot traffic, making it suitable for office environments with regular movement and equipment access.

2.2 Ensuring Proper Airflow

To ensure optimal airflow and heat dissipation, avoid obstructing the ventilation channels beneath the floor. When placing heavy equipment, ensure that there is adequate space between panels to allow airflow. Regularly inspect the ventilation channels to ensure they are free of dust, debris, or other obstructions that could impair airflow.

2.3 Safe Equipment Placement

While the floor can support heavy office equipment, be mindful of the following:

• Even Distribution of Weight: Distribute the weight of office equipment evenly across the panels to prevent localized stress on individual sections of the floor.

• Avoid Overloading: Do not exceed the weight limit of 1000 kg/m² to avoid structural damage or compromised heat dissipation.

2.4 Cable Management

Ensure that cables are routed through the designated cable management channels. These channels not only help organize cables but also improve airflow by preventing cables from obstructing the ventilation paths. Keeping cables organized also reduces the risk of tripping hazards and tangles.

3. Step-by-Step Installation Process

The Ventilation and Heat Dissipation OA Network Floor is easy to install due to its modular design. Below is a step-by-step guide for installation:

3.1 Preparation

Before installation, ensure the following:

• Subfloor Condition: The subfloor should be clean, dry, and level to ensure proper installation. Any debris or moisture can cause instability.

• Required Tools: You will need basic tools such as a rubber mallet, level, measuring tape, and a vacuum for cleaning.

3.2 Laying the First Row of Panels

1. Measure the Area: Carefully measure the installation area to determine how many panels you will need.

2. Place the First Panel: Begin by placing the first panel in the designated corner of the room. Use a level to ensure the panel is properly aligned and stable.

3. Continue Laying Panels: Continue laying panels row by row, interlocking them securely to form a seamless surface. Make sure that the edges are aligned and that the ventilation channels are not obstructed.

3.3 Installing Cable Management Channels

1. Lay Cable Channels: Install the cable management channels beneath the floor, ensuring that cables will be properly routed and organized.

2. Place Cables: Once the channels are in place, route the cables through the designated pathways, ensuring there is no interference with airflow or equipment.

3.4 Final Checks

• Check Alignment: After all panels are installed, check for any misalignment. If necessary, adjust the panels to ensure they are properly aligned.

• Test for Stability: Walk across the floor to ensure that it is stable and level. Make any necessary adjustments before moving equipment onto the floor.

4. Maintenance and Care Requirements

To ensure the longevity and efficiency of the Ventilation and Heat Dissipation OA Network Floor, regular maintenance is necessary. Below are the recommended maintenance tasks:

4.1 Daily Maintenance

• Sweeping/Vacuuming: Sweep or vacuum the floor daily to remove dust, dirt, and debris. This helps to prevent obstruction in the ventilation channels and maintains the floor's appearance.

• Spot Cleaning: If spills occur, clean the area immediately with a damp cloth and mild detergent. Avoid using harsh chemicals or abrasive materials that may damage the floor.

4.2 Weekly Maintenance

• Mopping: Mop the floor weekly using a damp mop with a non-abrasive cleaner. This helps maintain the floor’s appearance and ensures proper airflow through the ventilation channels.

• Cable Management Check: Inspect the cable management system to ensure that cables are organized and that no obstructions have formed in the ventilation channels.

4.3 Monthly Maintenance

• Deep Cleaning: Perform a deep cleaning of the ventilation channels, using a vacuum with a brush attachment to remove any dust or debris that may have accumulated.

• ESD Testing: Conduct a surface resistivity test to ensure the floor’s anti-static properties are functioning effectively. If necessary, re-coat the floor to restore its anti-static capabilities.
